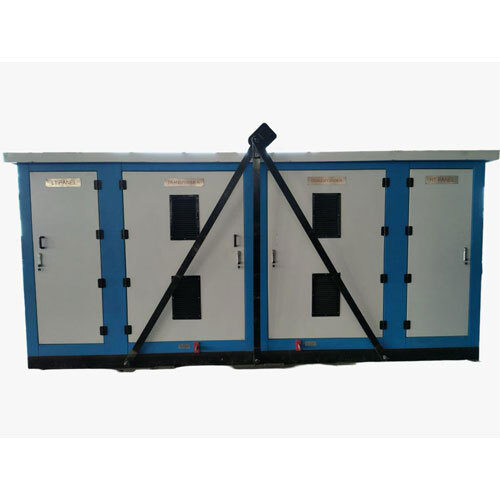

Industrial Compact Substation

Price 1000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Industrial Compact Substation Specification

Cooling Type
ONAN (Oil Natural Air Natural)

Voltage Booster Type
No

Load Loss
As per IS 1180 norms

Low Voltage
415 V

Rated Voltage
11 kV

Capacity
Up to 2500 kVA

High Voltage
11 kV

Coil Material
Copper or Aluminium

Dimension (L*W*H)
3600mm x 1700mm x 2100mm

Operating Temperature
-10C to +50C

Standard
IS 1180 / IEC 60076

Product Type
Compact Substation

Material
Mild Steel, Copper windings

Output
11 kV / 0.415 kV

Frequency (MHz)
50 Hz

Efficiency
98% approx.

Phase
Three Phase

Usage
Industrial, Commercial power distribution

Coil Structure
Toroidal

Coil Number
Two Coils (Primary & Secondary)

Power Scope
Up to 2500 kVA

Weight
Varies with capacity (Approx. 2000-4000 kg)

Secondary Distribution Box
Included for multiple outgoing feeders

Enclosure
Weatherproof and tamper-proof, IP55 rated

Transformer Type
Oil Immersed Distribution Transformer

Ambient Humidity
95% RH non-condensing

Mounting
Skid Mounted or Plinth Mounted

Insulation Class
Class A or F as per requirement

Protection
Inbuilt RMU (Ring Main Unit), circuit breakers, fuses

Paint Finish
Epoxy powder coated, anti-corrosive

Type Test
Short circuit, impulse voltage, temperature rise tests

Industrial Compact Substation Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
7 Days

About Industrial Compact Substation

Discover our featured Industrial Compact Substation with an oil-immersed distribution transformer, now available at an exclusive discount. This exceptional solution combines top-notch safety-thanks to its weatherproof, tamper-proof IP55 enclosure, and built-in RMU, circuit breakers, and fuses. The included secondary distribution box supports multiple outgoing feeders for seamless operation. Choose flexible mounting options-skid or plinth-and benefit from Class A or F insulation. The tough epoxy powder-coated, anti-corrosive finish withstands India's challenging conditions. Terrific quality is ensured through type tests for reliability. Ideal for manufacturers and suppliers seeking efficient, safe power distribution.

Key Features & Versatile Applications

Our Industrial Compact Substation delivers remarkable flexibility and resilience in one package. The anti-corrosive, weatherproof build ensures reliable functioning in manufacturing units, commercial complexes, and utility substations across varying climates. With easy mounting options, installation adapts to diverse application methods-skid mounting for mobility, plinth mounting for permanence. It's an ideal choice for modern power distribution, catering to high humidity and challenging environments, all while maintaining exceptional efficiency and safety.

Shipping, Capacity & Certification Details

Shipped via established domestic market transport services to your preferred FOB port, this substation is accessible across India for quick exchange and deployment. We maintain a robust supply ability to meet urgent orders and scale up for large projects. Every unit is certified and thoroughly tested for short circuit endurance, impulse voltage resistance, and temperature rise, confirming compliance with top industry standards. Choose confidence and high-value service with every shipment.

FAQ's of Industrial Compact Substation:

Q: How does the Industrial Compact Substation enhance electrical safety?

A: The substation features a weatherproof, tamper-proof enclosure, IP55-rated protection, and inbuilt RMU, circuit breakers, and fuses, ensuring comprehensive safety in distribution environments.

Q: What makes the oil-immersed distribution transformer the preferred choice in this substation?

A: Oil-immersed transformers provide exceptional thermal management and reliability, making them well-suited for industrial and utility applications with demanding performance requirements.

Q: When should I choose skid mounting versus plinth mounting?

A: Skid mounting offers mobility for temporary or changing installations, while plinth mounting is ideal for permanent setups requiring a stable base. Selection depends on your site's needs and long-term plans.

Q: Where can this substation be efficiently deployed?

A: It is optimized for use in industrial plants, commercial facilities, and utility areas-particularly where compact, weatherproof, and tamper-resistant installations are critical.

Q: What certifications and tests ensure the quality and reliability of these substations?

A: Each unit undergoes short circuit, impulse voltage, and temperature rise tests and is issued with the required certifications to meet national and international standards.

Q: How does the secondary distribution box benefit my operations?

A: The included secondary distribution box supports multiple outgoing feeders, allowing for efficient power distribution to various plant or building sections, improving operational flexibility and reliability.
