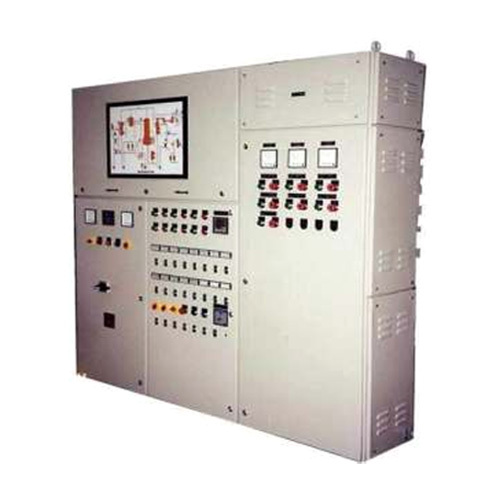

Industrial MCC Panel

Get a Price/Quote

MOQ : 1 Unit

Industrial MCC Panel Specification

Rated Operation Voltage
415V

Components
MCBs, MCCBs, Contactors, Relays, Indicating Lamps, Busbar, Terminal Blocks

Rated Insulation Voltage
660V

Operating Voltage
415V

Current Rating
2000A

Cover Material
Mild Steel Sheet

Features
Drawout/Non-Drawout Type, Modular Construction, Short Circuit Protected

Cabinet Material
CRCA Steel

Connectivity Type
Cable/Wire

Thickness
2 mm

Control System
Automatic/Manual

Way
4 Way, 8 Way, 12 Way

Base Material
Mild Steel

Cooling System
Natural Air Cooling

Panel Type
Floor Mounted

Rated Current
Up to 2000A

Protection Level
IP54

Protection Class
Class I

Product Type
Motor Control Center (MCC) Panel

Material
Other

Surface Finish
Powder Coated

Standard
IEC 61439, IS 8623

Surface Color
Siemens Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
2000A

Dimension (L*W*H)
Customized as per requirement

Application
Industrial Power Distribution

IP Rating
Ip54

Display Type
Analog/Digital Meters

Outgoing Type
Top/Bottom

Feeder Compartments
Formed with Interlocking

Short Circuit Withstand Capacity
Up to 50 kA

Bus Bar Material
Electrolytic Grade Copper/Aluminum

Incoming Type
Front/Rear

Ambient Temperature
-10C to +55C

Neutral Link Provision
Available

Customization
Available as per client specification

Enclosure Type
Dust and Vermin Proof

Wiring
FRLS (Flame Retardant Low Smoke) PVC insulated copper wires

Door Type
Hinged/Detachable

Mounting Type
Floor Standing

Earthing Provision
Dual

Industrial MCC Panel Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-7 Days

About Industrial MCC Panel

Utilise Offer on our top-notch MCC Panel, highly recommended for industrial power distribution and ending soon at exclusive prices. Crafted with first-class materials like electrolytic grade copper/aluminum busbars, this panel boasts a spectacular dust and vermin-proof enclosure and a robust Siemens Grey powder-coated finish. With a short circuit withstand capacity up to 50kA and dual earthing provision, it ensures maximum safety. Customised dimensions and way options, modular construction, and premium components deliver reliable, first-class performance adhering to IEC 61439 and IS 8623 standards.

Versatile Application and Usage of MCC Panel

This MCC Panel is designed for floor mounting in diverse industrial environments, making it suitable for heavy-duty power distribution tasks. Engineered for versatility, it is used at industrial sites, manufacturing units, and establishments where reliable and efficient control of electrical systems is mandatory. Its robust build and advanced features, like dual earthing and customizable compartments, make it ideal for managing varied electrical loads, enhancing operational safety and efficiency wherever it is deployed.

Sample Policy, Payment, and Shipping Details

We offer estimates and samples upon request to ensure your requirements are precisely met before finalizing orders. Flexible payment terms include advance, part-payment, and milestone-based payments to suit your needs. Our panels are shipped from major Indian FOB ports, packed securely to ensure they are delivered safely and on time. Expect transparent processing and prompt customer support at every stage, from pre-estimate discussions to delivery at your site.

FAQ's of MCC Panel:

Q: How is the MCC Panel customised according to a client's specifications?

A: The MCC Panel can be fully customised in terms of dimensions, number of ways, compartment layout, and component selection. Clients simply provide their operational requirements, and the panels are designed and manufactured accordingly, ensuring they meet precise needs for electrical distribution and control.

Q: What materials are used in the construction of the MCC Panel?

A: The panel utilizes electrolytic grade copper or aluminum for busbars, mild steel for the base and cover, CRCA steel for the cabinet, and FRLS PVC insulated copper wires for internal wiring. All materials are chosen for durability and high performance in demanding industrial environments.

Q: Where can the MCC Panel be installed?

A: This floor standing MCC Panel is ideally installed in industrial facilities, manufacturing units, or any setting requiring secure, reliable, and organized control of significant electrical loads. Due to its IP54 enclosure, it is suitable for dust-prone and challenging environments.

Q: What benefits does the dual earthing provision offer?

A: The dual earthing provision enhances system safety by providing two independent paths for fault currents, thereby boosting the reliability of the grounding system and contributing to overall operational safety.

Q: How is the MCC Panel shipped and what is the estimated delivery timeframe?

A: Once manufacturing is complete and quality checked, MCC Panels are shipped via major Indian FOB ports. Exact delivery timelines are provided after order confirmation, typically based on destination and volume; rest assured, all shipments are handled with care for timely arrival.
