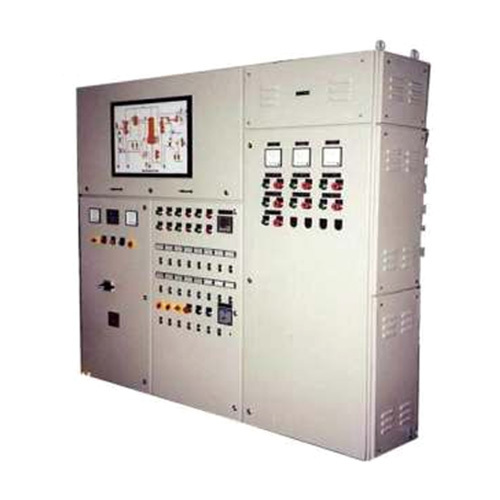

Industrial PCC Panel

Get a Price/Quote

MOQ : 1 Unit

Industrial PCC Panel Specification

Protection Class
Class 1

Control System
Manual/Automatic

Rated Operation Voltage
440V AC

Cover Material
Powder Coated MS

Thickness
2 mm

Panel Type
Floor Mounted

Operating Voltage
415V AC

Protection Level
IP55

Connectivity Type
Cable/Busbar

Current Rating
4000A

Base Material
Mild Steel

Rated Current
Up to 4000 Amps

Cabinet Material
CRCA Sheet Steel

Rated Insulation Voltage
1000V

Way
3 Way

Cooling System
Natural Air/Forced Air

Components
ACB, MCCB, MCB, CT, PT, Ammeter, Voltmeter, Indicators

Features
Shockproof, Corrosion Resistant, Durable, Low Maintenance

Product Type
Power Control Center (PCC) Panel

Material
Other

Surface Finish
Polyester Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Siemens Grey (RAL 7032)

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
4000A

Dimension (L*W*H)
Customized (As per requirement)

Application
Industrial Power Distribution

Display Type
Analog/Digital Meters

Internal Wiring
ISI Marked Copper PVC Wire

Operating Temperature
-10C to +50C

Testing
Routine & Type Tested at Certified Lab

Panel Weight
As per configuration

Enclosure Type
Modular, Rigid Construction

Busbar Type
Electrolytic Grade Copper / Aluminum

Earthing
Dual Earth Bus Provided

Mounting Type
Floor Standing / Wall Mounted (on request)

Door Locking Mechanism
3 Point Lock with Handle

Paint Thickness
70-80 microns

Industrial PCC Panel Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Industrial PCC Panel

Discover our customizable PCC Panel, expertly crafted with rare, sublime precision using Electrolytic Grade Copper or Aluminum busbars. Its modular enclosure ensures valiant protection and durability, offered at a reduced price without compromising robust features. The rigid construction, 3 point door locking mechanism, and dual earth bus provide potent reliability in industrial power distribution. With certified ISI copper PVC internal wiring, rigorous lab-tested performance, and corrosion-resistant, powder-coated mild steel finish, this panel stands ready for rigorous operation-offering up to 4000A and IP55 protection. Supplied ready-to-install across India.

Unmatched Features and Competitive Benefits

Our PCC Panel stands apart with its innovative modular design, customizable configurations, and superior protection standards (IP54/55). The 3 point handle lock ensures enhanced safety, while premium ISI-marked wiring promises long-term, low maintenance operation. Sublime in its build, the unit supports both floor and wall mounting and can be tailored for valiant performance in demanding environments. With versatile control systems and potent shockproof, corrosion-resistant internals, this panel serves as the backbone for reliable industrial power distribution.

Market Availability, Export Destinations, and Delivery Estimates

Proudly manufactured in India, our PCC Panels supply major domestic industrial sectors and enjoy export demand in regions across Asia, Africa, and the Middle East. List price and configuration determine order finalization, with swift order processing. Estimated arrival of shipments ranges between 2-6 weeks, depending on destination and customization needs. Fast delivery and responsive support have helped us maintain a valued position among suppliers for both local enterprises and international buyers.

FAQ's of PCC Panel:

Q: How can I customize the PCC Panel to meet specific requirements?

A: The PCC Panel is fully customizable, allowing you to select the busbar material, dimensions, mounting preference (floor or wall), components, and control systems. Share your specifications with our team, and we will tailor the panel to your unique industrial needs.

Q: What makes your PCC Panel a reduced price yet high-quality solution?

A: We leverage efficient manufacturing and sourcing methods, using ISI-marked materials and rigorous certified testing to deliver a reliable panel at a highly competitive, reduced price, without sacrificing build quality or performance.

Q: When can I expect the delivery of my customized PCC Panel?

A: Delivery times typically range from 2 to 6 weeks after order confirmation. The exact estimate depends on the complexity of your customization and the shipping destination. You'll receive a precise timeline during the ordering process.

Q: Where are your PCC Panels primarily used and exported?

A: Our PCC Panels are widely used in industrial power distribution across India and are also exported to key markets in Asia, Africa, and the Middle East, serving diverse industrial requirements internationally.

Q: What are the benefits of the panel's 3 point locking mechanism and dual earth bus?

A: The 3 point locking system enhances door security and operational safety, while the dual earth bus ensures superior fault current dissipation, increasing both personnel and equipment protection.

Q: How is routine and type testing conducted for your panels?

A: All panels undergo a strict series of routine and type tests in certified laboratories, confirming compliance with global standards (IEC 61439 / IS 8623) and ensuring reliable, potent operation under various industrial conditions.
