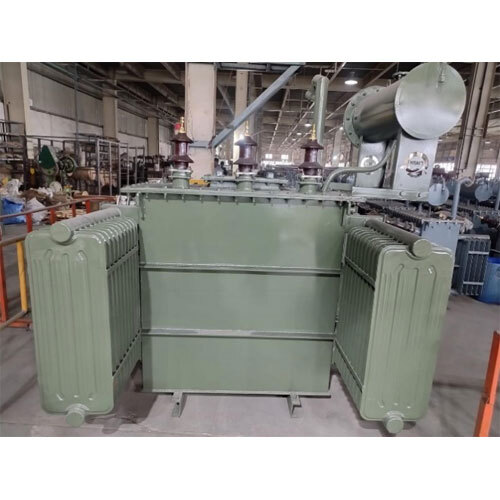

Industrial Distribution Transformer

Price 100000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Industrial Distribution Transformer Specification

Capacity
25 kVA - 2500 kVA

Voltage Booster Type
Automatic Tap Changer (Optional)

High Voltage
11 kV, 22 kV, 33 kV

Low Voltage
0.433 kV

Coil Material
Copper / Aluminium

Standard
IS 1180 (Part 1):2014, IEC 60076

Rated Voltage
11/0.433 kV, 22/0.433 kV, 33/0.433 kV (or as required)

Operating Temperature
-25C to +45C

Dimension (L*W*H)
Depends on rating, typically up to 2.2m x 1.1m x 1.8m

Cooling Type
ONAN (Oil Natural Air Natural)

Load Loss
As per IS 1180 (Part 1): 2014 or customer specification

Product Type
Oil Cooled Distribution Transformer

Material
Copper / Aluminium Winding, CRGO Silicon Steel Core

Output
Varies as per Capacity

Frequency (MHz)
50 Hz

Efficiency
98% approx.

Phase
Three Phase

Usage
Industrial, Commercial Power Distribution

Coil Structure
Toroidal / Cylindrical

Coil Number
Double Winding

Power Scope
Up to 2500 kVA

Weight
Varies as per rating, typically 500-3500 kg

Impedance
As per standard or customer requirement, typically 4% - 8%

Protection
Overload and Short Circuit Protected

Oil Type
Mineral Oil IS 335/1983 or as per Customer Requirement

Core Type
Step Lap CRGO Core

Winding Temperature Rise
Maximum 40C

Tank Type
Hermetically Sealed / Conservator Type

Accessories
Oil Level Gauge, Breather, Buchholz Relay, Thermometer Pocket, Wheels (Optional)

Tap Changer
Off Circuit Tap Link (OCTL), On Load Tap Changer (OLTC) (Optional)

Ambient Conditions
Outdoor / Indoor

Paint
Epoxy Coated, Rust Proof

Insulation Class
Class A / B / F (as specified)

Industrial Distribution Transformer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
7 Days

About Industrial Distribution Transformer

Introducing the Fresh and unassailable Industrial Distribution Transformer-a must-have for any power distribution network looking for reliable performance. Crafted for monumental efficiency, this transformer features insulation classes A, B, or F to suit your requirements, impedance tailored between 4% and 8%. Choose Off Circuit Tap Link or optional On Load Tap Changer for flawless voltage regulation. The hermetically sealed tank, epoxy-coated for rust-proof durability, coupled with state-of-the-art CRGO core and critical safety accessories, ensures robust protection and long-lasting performance. Grab this flawless solution and infuse strength into your infrastructure.

Versatile Usage & Essential Features

Industrial Distribution Transformers are widely used by utilities, manufacturing plants, and commercial complexes for general power distribution and voltage adaptation. These transformers offer monumental benefits such as overload and short-circuit protection and operate in both indoor and outdoor settings. Features include a step lap CRGO core, epoxy-coated rust-proof tank, and essential accessories like oil level gauge and thermometer pocket, making it a must-have for robust and efficient energy management.

Certifications, Packaging & Dispatch

Each transformer is delivered with full compliance to Indian standards, such as IS 335/1983 for oil quality, supported by rigorous QA certifications. Shipped goods are securely packaged to prevent transit damage, ensuring safe arrival at your facility. Order processing includes sample policy customization upon request, providing peace of mind and quality assurance. All shipments are tracked, and updates are communicated throughout dispatch so your order reaches you seamlessly and efficiently.

FAQ's of Industrial Distribution Transformer:

Q: How does the Industrial Distribution Transformer ensure safety during operation?

A: The transformer is built with overload and short-circuit protection mechanisms. Accessories like the Buchholz Relay and thermometer pocket help monitor and manage operating conditions, ensuring unassailable safety at all times.

Q: What are the available options for tap changers in this transformer?

A: You can choose between the Off Circuit Tap Link (OCTL) for standard voltage regulation or the optional On Load Tap Changer (OLTC) for continuous adjustment under load, offering flexibility for various applications.

Q: Where can the Industrial Distribution Transformer be installed?

A: This transformer is designed for both indoor and outdoor installations, thanks to its hermetically sealed or conservator-type epoxy-coated tank, making it adaptable for different environments.

Q: What is the process for ordering and receiving a sample unit?

A: Sample policy options are available upon request. Once your order is processed, your goods are packaged securely and shipped with tracking to ensure delivery meets your expectations.

Q: What are the benefits of grabbing this transformer for my facility?

A: It offers flawless reliability, monumental durability thanks to the rust-proof construction, and tailored features to match your technical and environmental needs, making it a must-have for efficient power distribution.
