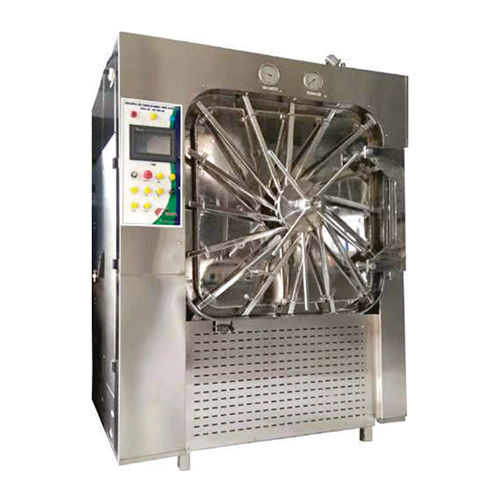

Industrial Horizontal Rectangular Autoclave (HR-508 )

Get a Price/Quote

MOQ : 1 Unit

Industrial Horizontal Rectangular Autoclave (HR-508 ) Specification

Type
Horizontal Rectangular Autoclave

Chamber Size
1200 x 600 x 600 mm

Chamber Thickness
10-12 mm (SS316)

Outer Size
1800 x 760 x 760 mm

Compressed Air
2-3 kg/cm2

Door Type
Radial Locking Manual / Automatic Sliding

Design Pressure
2.5 kg/cm2

Working Pressure
1.2 kg/cm2

Design Temperature
140C

Heat Uniform
1C

Insulation
Glass Wool / Mineral Wool, 50mm thick

Net Weight
Approx. 550 kg

Recording Parameters
Digital Printer / Data Logger

Spraying Mode
Rotating Nozzle / Static

Outer Trolley
Stainless Steel, Removable

Inner Trolley
Stainless Steel, Removable

Spraying Piping
SS316, Uniform Distribution

Steam
External Steam Supply / Integrated Steam Generator

Sterilizing Temperature
121C - 134C

Working Temperature
Up to 134C

Sterilization Time
0-99 mins user Programmable

Temperature Scope
Ambient to 134C

Piping System
SS316 with High Pressure Endurance

Valves
Safety Valve, Vacuum Breaker, Steam Release Valve

Power Consumption
8-12 KW (Depending on Model)

Control System
Microprocessor Based with Touch Screen HMI

Water Consumption per Cycle
15-20 Litres

Safety Features
Safety Door Interlock, Pressure Switch, Low Water Cut-off

Water Filling
Automatic / Manual

Surface Finish
Mirror Polished Chamber, Matt Finish Exterior

Vacuum System
High-Efficiency Vacuum System (Optional)

Drainage System
Efficient Bottom Drain with Trap

Mount Type
Floor Mounted with Heavy Duty Wheels

Door Gasket
Inflatable / Non-Inflatable

Heating Element
Nichrome Tube Heater, Stainless Steel Sheathed

Gasket
Silicone / EPDM Autoclavable

Chamber Material
SS316 Stainless Steel, Corrosion Resistant

Power Supply
415V AC, 50Hz, 3 Phase

Chamber Shape
Rectangular

Industrial Horizontal Rectangular Autoclave (HR-508 ) Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
7 Days

About Industrial Horizontal Rectangular Autoclave (HR-508 )

Experience formidable performance with the Industrial Horizontal Rectangular Autoclave (HR-508), engineered for masterful sterilization solutions across diverse applications. Constructed from rarefied SS316 stainless steel, this corrosion-resistant unit offers savings through durability and energy efficiency. Take advantage of advanced features, including a microprocessor-based control system with a sleek touch screen HMI. Safety is paramount, boasting door interlock and critical cut-off systems. The hot deal combines reliability, automatic/manual water filling, high-efficiency vacuum (optional), mirror-polished chamber, and effortless mobility-making it an unbeatable investment for manufacturers and suppliers in India.

Industrial Horizontal Rectangular Autoclave (HR-508): Unmatched Engineering & Features

The HR-508 autoclave comes equipped with a formidable microprocessor-based control system, touch screen HMI, and a stainless steel SS316 chamber that resists corrosion. Its rarefied mirror polished finish, heavy-duty wheels, and efficient drainage set it apart. Key advantages include customizable water filling modes, automatic safety door interlock, high-performance vacuum system (optional), and superior heating elements, establishing it as a masterful solution for high-volume sterile processing environments where performance and savings converge.

Payment Terms, Sample Policy, and Availability: HR-508 Autoclave

Domestic markets enjoy prompt freight and flexible supply options when acquiring the HR-508. Payment terms are designed for convenience, supporting a variety of options to streamline procurement. Sample policies ensure product confidence - manufacturers and suppliers can access samples upon request to evaluate machine performance. Fast delivery, clear sample availability, and reliable logistics make the HR-508 a seamless choice for those prioritizing both quality and operational assurance in autoclave acquisition.

FAQ's of Industrial Horizontal Rectangular Autoclave (HR-508 ):

Q: How does the HR-508 autoclave ensure user safety during operation?

A: The HR-508 employs a safety door interlock, pressure switch, and low water cut-off, preventing accidental opening and ensuring optimal safety during each sterilization cycle.

Q: What are the main benefits of choosing the SS316 stainless steel chamber?

A: The SS316 stainless steel chamber delivers rarefied corrosion resistance, robust durability, and a mirror finish, securing prolonged usability and consistent performance in demanding environments.

Q: When should users consider opting for the high-efficiency vacuum system?

A: The high-efficiency vacuum system is ideal when advanced sterilization is needed for porous materials, ensuring complete air removal for masterful, reliable results each cycle.

Q: Where is this Industrial Horizontal Rectangular Autoclave manufactured and supplied?

A: This model is manufactured and supplied by leading industry specialists based in India, offering domestic and international freight solutions for widespread accessibility.

Q: What special features distinguish the HR-508 from other autoclaves?

A: Key features include microprocessor-based controls with touch screen HMI, automatic/manual water options, efficient drainage, mirror-polished chamber, and formidable safety mechanisms, ensuring superior operational efficiency.

Q: How much water does the HR-508 consume per cycle?

A: Each cycle of the HR-508 uses approximately 15-20 litres of water, supporting efficient yet effective sterilization that optimizes savings over routine operation.
