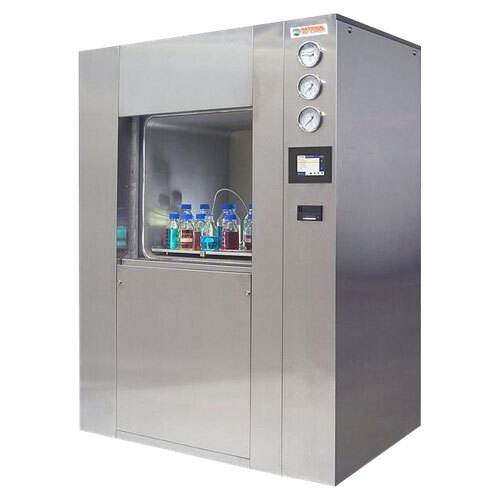

Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C)

Send Inquiry

Request To Call Back

Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C)

Get a Price/Quote

MOQ : 1 Piece

Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C) Specification

Type
Rectangular Horizontal Autoclave

Chamber Size
1,000 L (customizable)

Chamber Thickness
10-16 mm depending on capacity

Outer Size
1800 x 1200 x 1100 mm

Compressed Air
6-8 Kg/cm2

Door Type
Single Sliding Door

Design Pressure
2.5 bar

Working Pressure
1.2-2.1 bar

Design Temperature
150C

Heat Uniform
2C uniformity

Insulation
Mineral wool/ceramic fiber insulation (75 mm)

Net Weight
Approx. 1500 kg

Recording Parameters
Temperature, pressure (digital/graph recorders)

Spraying Mode
Multi-point spraying system

Outer Trolley
Supplied as per requirement

Inner Trolley
Removable type stainless steel

Spraying Piping
Stainless steel SS 304/316

Steam
Required at 2-3 bar pressure

Sterilizing Temperature
Up to 134C

Working Temperature
121C / 134C

Sterilization Time
Programmable, up to 99 minutes

Temperature Scope
105C to 134C

Piping System
Stainless steel internal piping

Valves
Pneumatic/automatic safety valves

Power Consumption
Approx. 12-18 kW depending on model size

Gasket
Silicone rubber high temperature resistance

Service Requirement
Single point steam and water inlet/utility access

Power Supply
3 Phase, 415V AC, 50 Hz

Water Level Indicator
Provided

Material of Construction
Stainless Steel 304/316 grade

Test Port
Provided for temp/pressure mapping

Alarm System
Audio-visual alarms for cycle completion and errors

Pressure Gauge
Digital/analog combination

Condensate Drain
Automatic condensate removal system

Control System
Microprocessor based PLC with HMI interface

Standards Compliance
ASME/ISO13485/CE compliant

Optional Features
Remote monitoring, printout provision, additional cycles

Heater Type
Electrical heaters with thermostatic control

Chamber Finish
Mirror finish internal, matte external

Safety Interlocks
Door interlock with over-pressure protection

Door Sealing
Pneumatically operated automatic door gasket

Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C)

Experience a sensational solution with the all-new Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C)-a matchless sterilization equipment engineered for reliability and efficiency. Crafted from premium Stainless Steel 304/316 grade, this customizable autoclave features a stellar array of functions: electrical heaters with thermostatic control, microprocessor PLC with HMI, robust safety interlocks, and advanced audiovisual alarms. Buy online and enjoy the peace of mind assured by ASME/ISO13485/CE compliance. Proudly manufactured by a leading supplier in India, the Hrs-508C is your optimal choice for superior sterilization performance.

Application Versatility and Surface Use

The Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C) is expertly used for sterilizing large medical, laboratory, and pharmaceutical equipment. Its robust design is ideal for surfaces like stainless steel tools, glass, and textiles. Application media include steam and air for effective sterilization. This autoclave is an essential addition to healthcare, biotech, and research facilities demanding high standards for infection control and equipment decontamination.

Outlay, Rate, and Certifications for Shipment

The Hrs-508C autoclave offers a competitive rate for bulk or single-unit orders, ensuring optimal outlay for your facility. It is shipped from major Indian FOB ports with comprehensive guidance on shipment procedure. Certified to meet ASME, ISO13485, and CE standards, it guarantees trust and quality. Flexible payment terms streamline your purchase, making this investment efficient and hassle-free for businesses across international markets.

FAQ's of Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C):

Q: How is the Industrial Horizontal Rectangular Single Sliding Door Autoclave (Hrs-508C) used?

A: This autoclave is designed for sterilizing a wide range of equipment using high-pressure steam. Users load items onto trays or carts, select appropriate sterilization cycles using the HMI interface, and operate the pneumatically sealed sliding door to begin the process. Safety interlocks and alarms provide added protection throughout every cycle.

Q: What types of applications is the Hrs-508C suitable for?

A: The Hrs-508C is ideal for hospitals, research labs, and pharmaceutical industries needing to sterilize large batches of surgical tools, glassware, textiles, and laboratory instruments. Its advanced features and compliance with global standards ensure suitability in environments demanding rigorous sterilization protocols.

Q: When should the autoclave's water and steam inlets be serviced?

A: Routine maintenance is recommended based on usage frequency, but regular checks every three to six months are advisable to ensure optimal performance and longevity. The single-point access design simplifies utility connections for easier servicing.

Q: Where is the Hrs-508C manufactured and shipped from?

A: This autoclave is manufactured by a reputed supplier in India and can be shipped globally from major Indian FOB ports, ensuring timely and secure delivery for domestic as well as international clients.

Q: What benefits does the microprocessor-based PLC with HMI provide?

A: The advanced PLC system enhances operational control by offering user-friendly programming, precise cycle monitoring, digital/analog pressure indication, and robust safety features. Optional remote monitoring and data printouts further add convenience and traceability for users.
