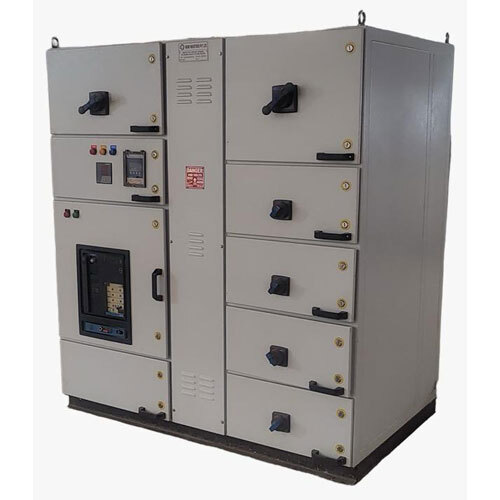

Industrial Ht Pannels

Get a Price/Quote

MOQ : 1 Unit

Industrial Ht Pannels Specification

Operating Voltage
Up to 36kV

Cabinet Material
Powder Coated MS

Cooling System
Air Cooled

Rated Operation Voltage
Up to 36kV

Components
Circuit Breaker, Current Transformer, Voltage Transformer, Bus Bar, Relays

Rated Insulation Voltage
Up to 40.5kV

Rated Current
Up to 3200A

Connectivity Type
Wired, SCADA Optional

Thickness
1.6mm - 2.5mm

Control System
Automatic & Manual

Protection Class
Class I

Way
Custom

Features
Weather Proof, Compact Design, High Short Circuit Withstand Capacity

Base Material
Steel

Protection Level
IP54 / IP55

Cover Material
MS (Mild Steel)

Current Rating
200A to 3200A

Panel Type
Outdoor / Indoor

Product Type
HT Panel

Material
Mild Steel, CRCA Sheet

Surface Finish
Powder Coated

Standard
IS 8623 / IEC 61439

Surface Color
Grey

Rated Voltage
11kV, 22kV, 33kV

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 3200A

Dimension (L*W*H)
As per customer requirement

Application
Power Distribution, Industrial & Commercial

IP Rating
IP54 / IP55

Display Type
Analog / Digital Meters

Earthing Provision
Double Earthing provided

Operating Ambient Temperature
-10C to +55C

Neutral Bar
Heavy Duty Copper

Enclosure Material
Rust Resistant, Powder Coated Steel

Short Circuit Withstand Capacity
Up to 50kA for 1 sec

Extension Facility
Panels can be extended on both sides

Humidity
Up to 95% RH, Non-condensing

Interlocking System
Provided for Safety

Busbar Material
Electrolytic Grade Copper or Aluminium

Paint Type
Epoxy Polyester Powder Coated

Insulation
High-grade Insulation Material used

Testing
Type Tested as per IS / IEC Standards

Mounting Type
Floor Mounted / Wall Mounted

Service Life
Over 20 years under normal operating conditions

Industrial Ht Pannels Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
7 Days

About Industrial Ht Pannels

Experience the inestimable value of our top-rated Industrial HT Panels, a must-have for contemporary industrial facilities across India. Utilise this offer to secure panels featuring pivotal attributes such as electrolytic grade copper or aluminium busbars and a rust-resistant, powder-coated steel enclosure. Exceptional safety is ensured through advanced interlocking systems, double earthing provisions, and heavy-duty copper neutral bars. Rigorously type tested as per IS/IEC standards, these panels promise a service life exceeding 20 years. Suitable for diverse environments, they withstand temperatures from -10C to +55C and humidity up to 95% RH.

Key Features & Applications

Industrial HT Panels are designed for seamless integration in power distribution within factories, plants, and commercial complexes. Simply mount the panel-floor or wall options available-connect wiring as per the provided diagrams, and ensure proper earthing. The panels are pivotal in safeguarding machinery, facilitating electrical distribution, and providing reliable operation in high-demand applications. With robust construction and type-tested assurance, these panels contribute to efficiency and equipment longevity in industrial environments.

Sample Policy, Delivery & Certifications

Our sample policy supports domestic markets, allowing hands-on evaluation before full-scale implementation. Panels are rigorously certified, meeting or exceeding IS/IEC benchmarks. Delivery typically occurs within a few weeks, with units safely handed over or dropped off at your location as scheduled. Certifications ensure compliance and safety-each panel's credentials accompany the documentation upon delivery, providing peace of mind and reliability for industrial deployments across India.

FAQ's of Industrial Ht Pannels:

Q: How are Industrial HT Panels installed for optimal performance?

A: Industrial HT Panels can be floor-mounted or wall-mounted easily, following the provided wiring diagram. Ensure the panel is secured at the mounting location and all safety protocols, including proper earthing connections, are observed.

Q: What are the main benefits of using Electrolytic Grade Copper or Aluminium in the busbar system?

A: Using electrolytic grade copper or aluminium in busbars ensures superior conductivity, reduced energy losses, and improved reliability, making them essential for high-efficiency industrial power distribution.

Q: Where can these HT Panels be utilised in industrial settings?

A: These HT Panels are ideal for plants, factories, and commercial complexes where robust power distribution, safety, and durability are critical to operations.

Q: What certifications do these Industrial HT Panels carry?

A: All panels are type tested and certified as per IS/IEC standards, ensuring quality, performance, and safety for every installation.

Q: How does the interlocking system enhance operational safety?

A: The provided interlocking system prevents accidental access to high-voltage components, reducing the risk of electrical accidents and ensuring safe operation during maintenance and use.

Q: When is the typical delivery time, and how are the panels handed over?

A: Delivery is usually completed within a few weeks of order confirmation. Panels are dropped off or handed over at your specified domestic location, with all documentation and certifications included.
