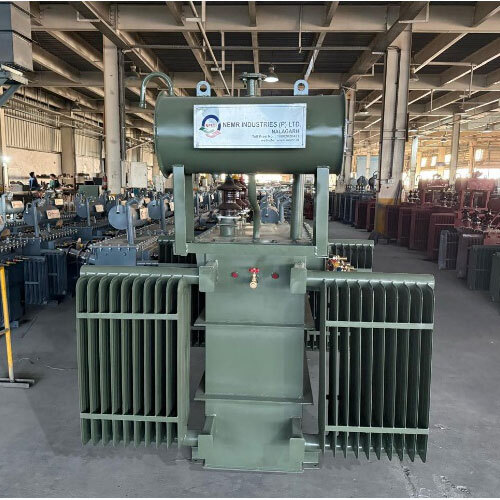

Industrial Power Distribution Transformer

Price 5000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Industrial Power Distribution Transformer Specification

Cooling Type
ONAN (Oil Natural Air Natural)

Operating Temperature
Up to 60C

Dimension (L*W*H)
Depends on rating, typically 1800x1500x2000 mm

Load Loss
As per IS 1180 / IEC Standards

Standard
IS 1180, IEC 60076

Capacity
Up to 2500 kVA

Rated Voltage
11 kV / 33 kV

High Voltage
11 kV / 33 kV

Coil Material
High Conductivity Copper

Low Voltage
0.4 kV

Product Type
Oil Immersed Power Distribution Transformer

Material
Copper, Silicon Steel Core

Output
Customizable as per requirement

Frequency (MHz)
50 Hz

Efficiency
Up to 98%

Phase
Three Phase

Usage
Industrial, Commercial Power Distribution

Coil Structure
Layer Wound, Spiral Wound

Coil Number
Two (Primary and Secondary)

Power Scope
100 kVA to 2500 kVA

Weight
Varies by capacity, approx. 700-3200 kg

Mounting Type
Pole Mounted / Plinth Mounted

No Load Loss
As per IS 1180 / IEC norms

Vector Group
Dyn11

Impedance Voltage
4% (Typical standard value)

Protection
Buchholz Relay, Temperature Indicator, Pressure Relief Device

Winding Material
Super Enameled Copper Wire

Insulation Level
A class, High grade insulating oil

Tap Changer
Off Circuit Tap Changer (OCTC) or On Load Tap Changer (OLTC)

Painting Type
Anti-corrosive Powder Coated

Industrial Power Distribution Transformer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
7 Days

About Industrial Power Distribution Transformer

Engineered for unmatched reliability, this Industrial Power Distribution Transformer boasts an ephemeral blend of select materials and masterful technology. Featuring a typical impedance voltage of 4%, A class insulation, and high-grade insulating oil, it ensures cost-effective operation and unparalleled performance. Every transformer meets IS 1180 / IEC standards, with breathtaking no load loss figures. Outfitted with anti-corrosive powder coating, advanced Buchholz relay protection, and super enameled copper windings, this Indian-made marvel is the select solution for dynamic industrial power needs, available through trusted manufacturers and suppliers.

Versatile Application in Diverse Industrial Sites

This transformer is thoughtfully designed for seamless integration across a multitude of applications-whether deployed at large-scale industrial sites, commercial complexes, or utility substations. Its pole-mounted or plinth-mounted options provide installation flexibility, while its robust protection features and advance tap changer technology ensure optimal performance in energy transmission, distribution networks, and industrial manufacturing units, meeting and exceeding operational demands effectively.

FOB Port, Certifications, and Sample Policy Details

Our industrial transformers are shipped from select major Indian ports, offering express shipping options to expedite delivery at a premium rate. Each unit is supported by rigorous certifications, ensuring compliance with both national and international standards. A flexible sample policy is available to assist buyers in assessing quality and suitability prior to placing large orders, making your investment both safe and cost-effective.

FAQ's of Industrial Power Distribution Transformer:

Q: How does the Industrial Power Distribution Transformer ensure operational safety?

A: Equipped with a Buchholz relay, temperature indicator, and pressure relief device, this transformer provides multi-layered protection to minimize the risk of faults and overheating, ensuring sustained, safe operation in demanding environments.

Q: What makes the insulation and winding material select and effective?

A: The transformer uses A class insulation and super enameled copper wire winding, both chosen for their superior dielectric strength and thermal stability, ensuring long-term, efficient performance and minimal energy loss.

Q: When should you choose On Load Tap Changer (OLTC) over Off Circuit Tap Changer (OCTC)?

A: OLTC is ideal if voltage adjustment is required under load conditions, ensuring uninterrupted power supply, whereas OCTC is suitable for applications where voltage changes are infrequent and can be performed during downtimes.

Q: Where can this transformer be mounted for optimum performance?

A: You can choose between pole mounting for compact spaces or plinth mounting for ground installations, providing versatility and adaptability to both urban and industrial landscapes.

Q: What is the process for obtaining a product sample before placing a bulk order?

A: Buyers can request product samples under our flexible sample policy, allowing evaluation and suitability checks before committing to large-volume purchasing-ensuring confidence and satisfaction with the final investment.
