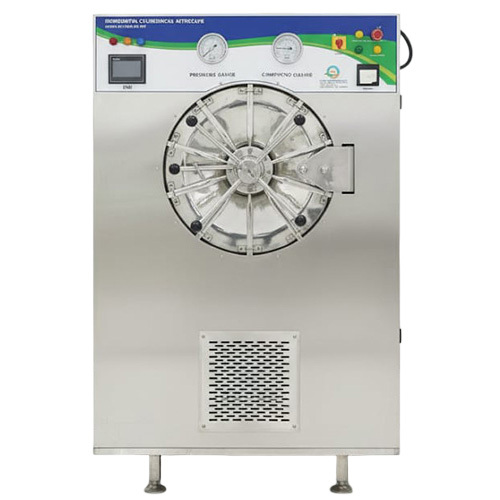

Industrial Rectangular Autoclav

Get a Price/Quote

MOQ : 1 Unit

Industrial Rectangular Autoclav Specification

Type
Rectangular horizontal autoclav

Chamber Size
1500 x 800 x 800 mm

Chamber Thickness
8 mm

Outer Size
2200 x 1200 x 1500 mm (L x W x H)

Compressed Air
6-8 bar

Door Type
Horizontal sliding, fully automatic

Design Pressure
2.5 bar

Working Pressure
2.1 bar

Design Temperature
134C

Heat Uniform
1C

Insulation
High density glass wool

Net Weight
About 1700 kg

Recording Parameters
Digital, temperature and pressure

Spraying Mode
Multi-directional spray nozzles

Outer Trolley
Available, SS304 construction

Inner Trolley
Detachable, SS304 with perforations

Spraying Piping
Stainless steel seamless pipes

Steam
External Steam Source required

Sterilizing Temperature
121C to 134C

Working Temperature
Up to 134C

Sterilization Time
0-99 min, adjustable

Temperature Scope
Room temperature to 134C

Piping System
Fully automatic pneumatic

Valves
Automatic safety and steam release valves

Power Consumption
12 kW

Door Sealing
Silicone gasket, pneumatic operated

Chamber Finish
Mirror polished interior

Display
Microprocessor based HMI touchscreen

Control System
PLC Controlled with programmable cycles

Water Source
Inbuilt water tank with level indicator

Applicable For
Hospital, Laboratory, Pharmaceutical industry

Safety Features
Over-pressure and over-temperature protection

Chamber Material
High grade Stainless Steel (SS304/SS316)

Heating Method
Indirect steam heating

Industrial Rectangular Autoclav Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-7 Days

About Industrial Rectangular Autoclav

Experience unrivaled sterilization efficiency with our Latest Select Rectangular Autoclav, meticulously engineered for hospitals, laboratories, and pharmaceutical industries. Featuring an immaculate, mirror-polished chamber crafted from high-grade SS304/SS316 stainless steel, this exquisite machine ensures uniform heat distribution with indirect steam heating and multi-directional spray nozzles. Access unmatched safety with a PLC-controlled system, fully automatic operations, and advanced audio-visual alarms. Its pneumatic horizontal sliding door, silicone gasket, and robust insulation guarantee secure, seamless cycles. Digital parameter recording, along with a microprocessor HMI touchscreen, delivers impeccable process control-making this autoclav your premier partner for critical sterilization.

Versatile Usage & Operation Directions

This Select rectangular autoclave caters to hospitals, laboratories, and the pharmaceutical industry-ideal where impeccable sterilization is paramount. Type of usage can be batch-based or continuous, suited for clinical tools, laboratory glassware, or pharmaceutical instruments. Users access the chamber via a fully automatic, horizontal sliding door and initiate cycles using an intuitive HMI touchscreen. For each cycle, operators simply load items onto the detachable inner trolley, ensuring efficient and convenient directional placement within the chamber.

Sample Policy & Certifications

Samples of our exquisite rectangular autoclave can be made available upon request, ensuring clients' satisfaction prior to bulk or final order completion. Certified to meet high-grade industry standards, each sample unit is carefully shipped and fully tested for functionality. Once your order is confirmed, units are dispatched efficiently to your site, with certifications and detailed documentation provided to verify compliance and unmatched performance in all critical sterilization applications.

FAQ's of Rectangular Autoclav:

Q: How is the Select rectangular autoclav operated?

A: The autoclav is operated through a programmable PLC system, accessible via a microprocessor-based HMI touchscreen. This enables users to select and monitor precise sterilization cycles with minimal manual intervention.

Q: What materials are used in the construction of the chamber and trolleys?

A: The chamber and trolleys are crafted from high-grade SS304 or SS316 stainless steel, ensuring durability, corrosion resistance, and an immaculate, mirror-polished finish.

Q: When should the autoclav's inbuilt water tank be refilled?

A: The water tank features a level indicator; refill is required whenever the indicator signals a low level to maintain uninterrupted operation.

Q: Where can this autoclave be installed?

A: This rectangular autoclav is suitable for installation in hospitals, laboratories, and pharmaceutical production areas, wherever high-performance sterilization is essential.

Q: What safety features are included in this system?

A: The autoclav is equipped with over-pressure and over-temperature protection, automatic safety and steam release valves, as well as an advanced audio-visual alarm system for process errors, ensuring optimum operator and equipment safety.

Q: How does the pneumatic system benefit users?

A: The pneumatic system automates door movement and controls, streamlining loading and unloading while providing consistent sealing and enhanced workplace safety.
